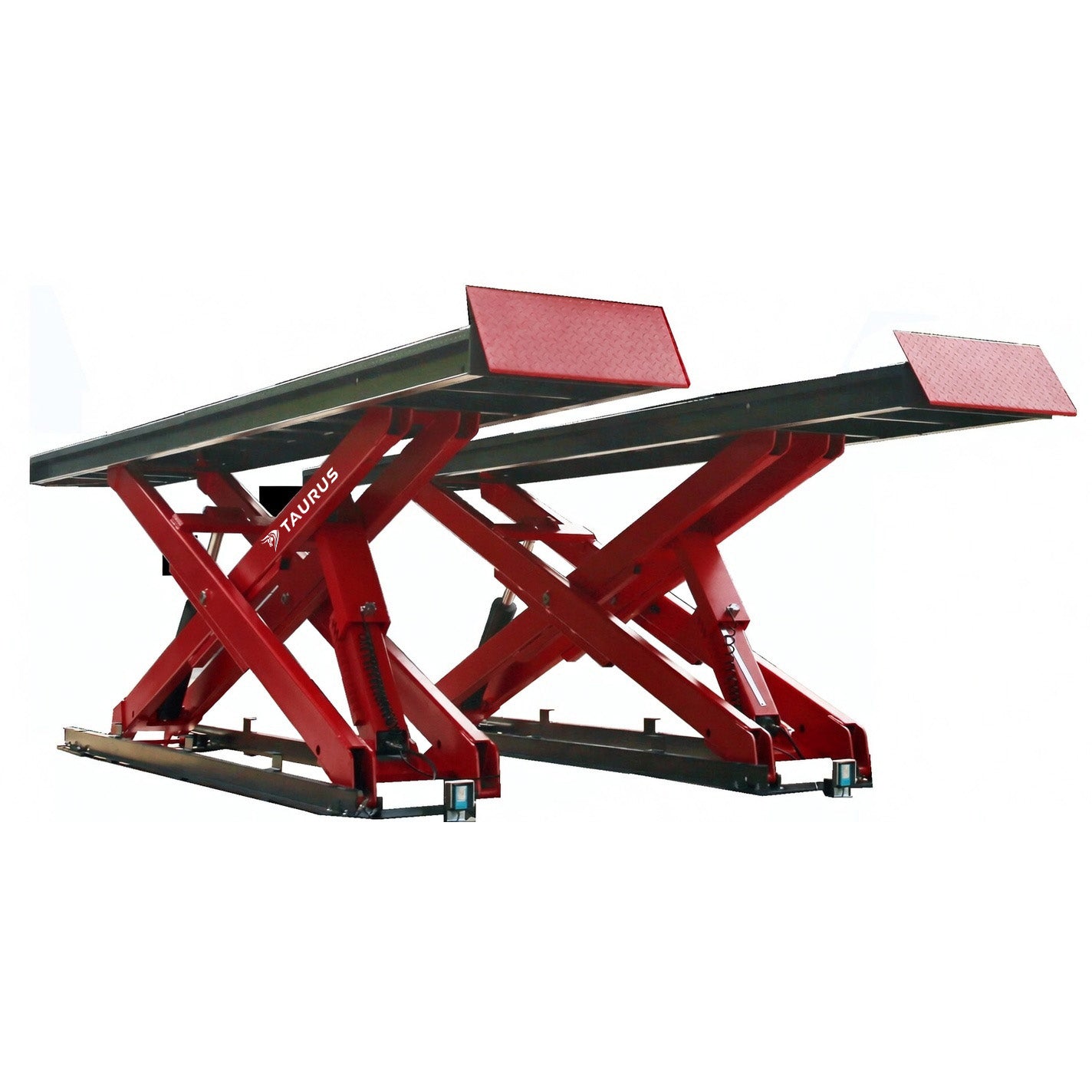

Taurus RX150HD : 36,000lb Heavy-Duty Scissor Lift

The TaurusRX150HD is the ideal heavy-duty lifting solution for commercial garages, fleet maintenance facilities, and shops servicing heavy vehicles such as haulers, buses, motorcoaches, and similar large equipment. This robust lift safely handles capacities up to 36,000 lbs (15,000 kg) and accommodates wheelbases of 300 inches or less. With optional bridge jacks and alignment kits, it transforms into a versatile, multi-purpose lift to meet all your heavy-duty service requirements—combining reliable lifting with enhanced functionality for alignment, undercarriage work, and more. Perfect for high-volume operations where safety, durability, and adaptability are essential.

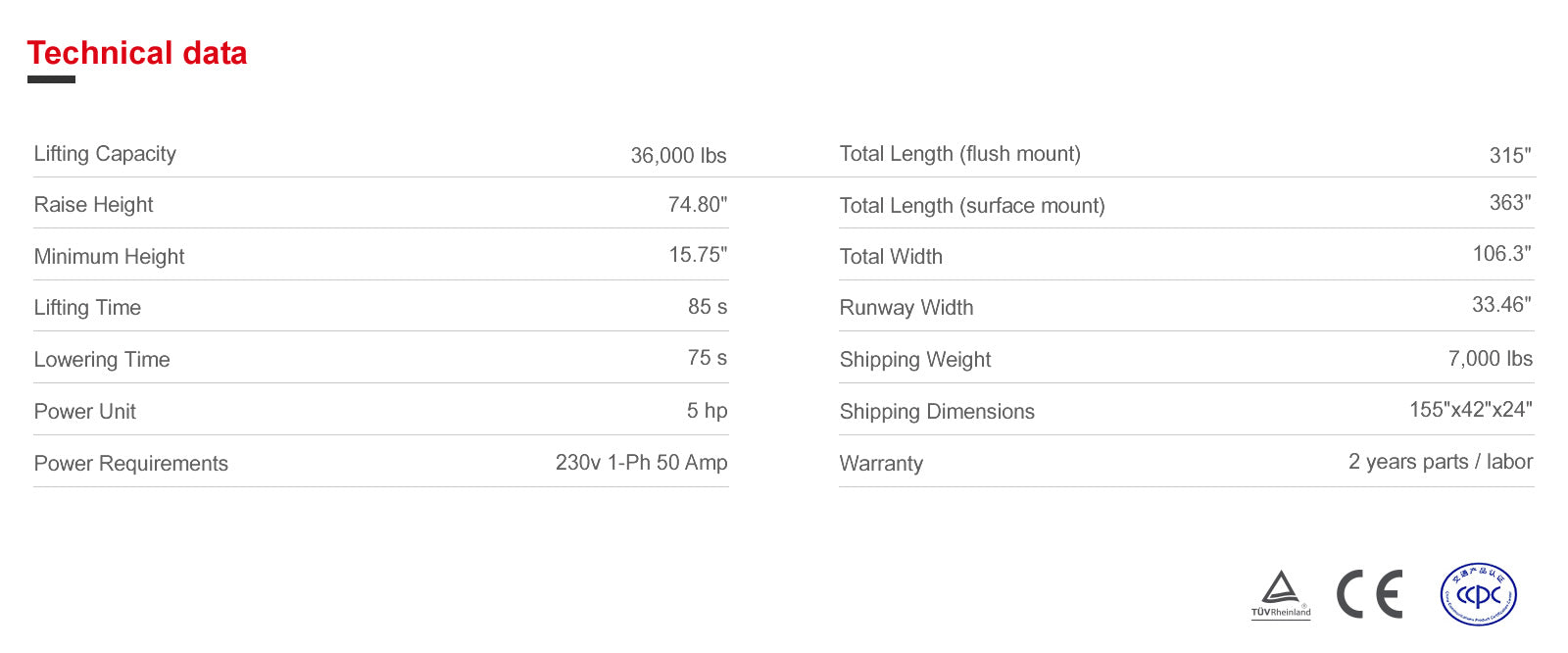

Key Specifications & Safety Features

• Lifting capacity: 15,000 kg (36,000 lbs)

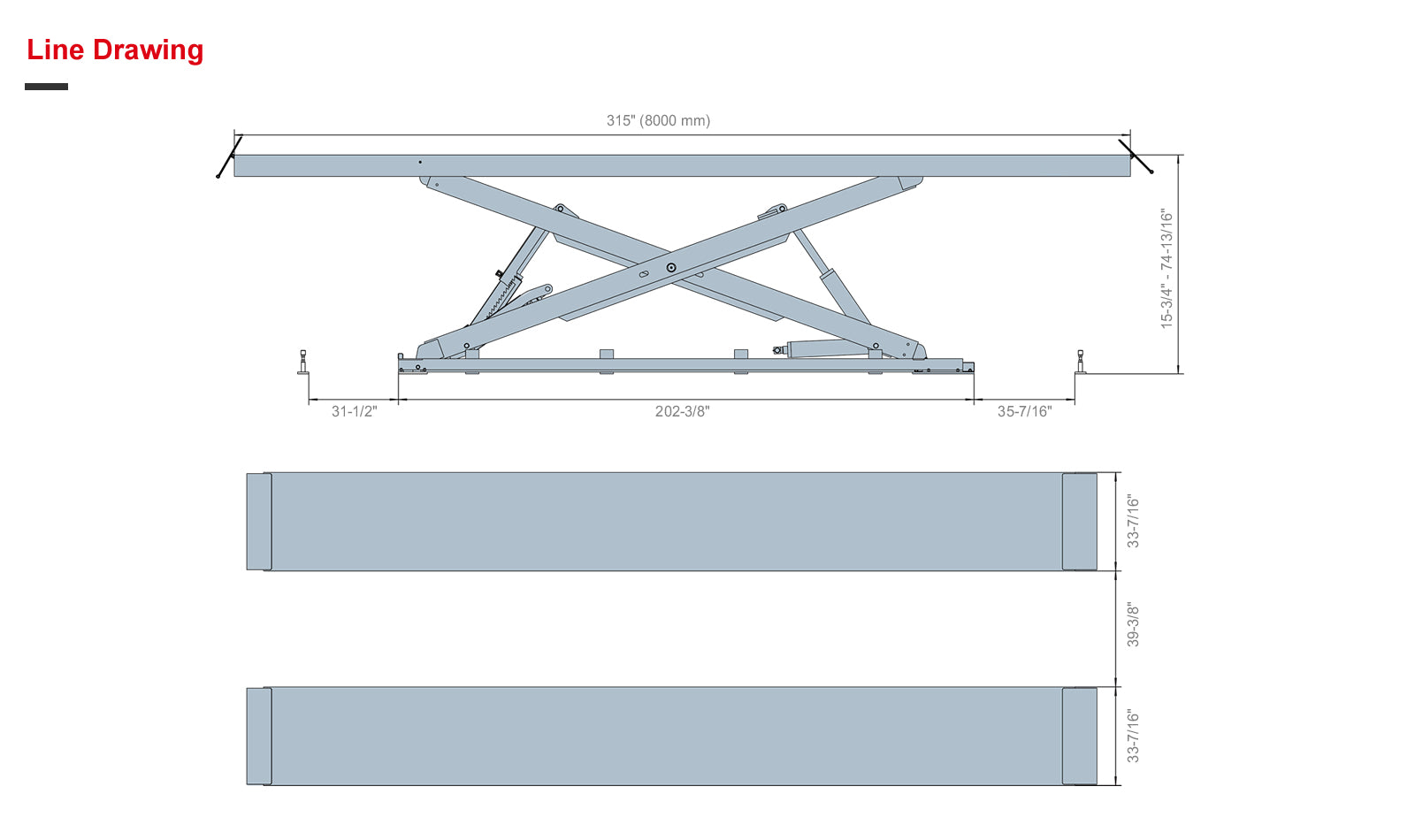

• Platform Length: 315"

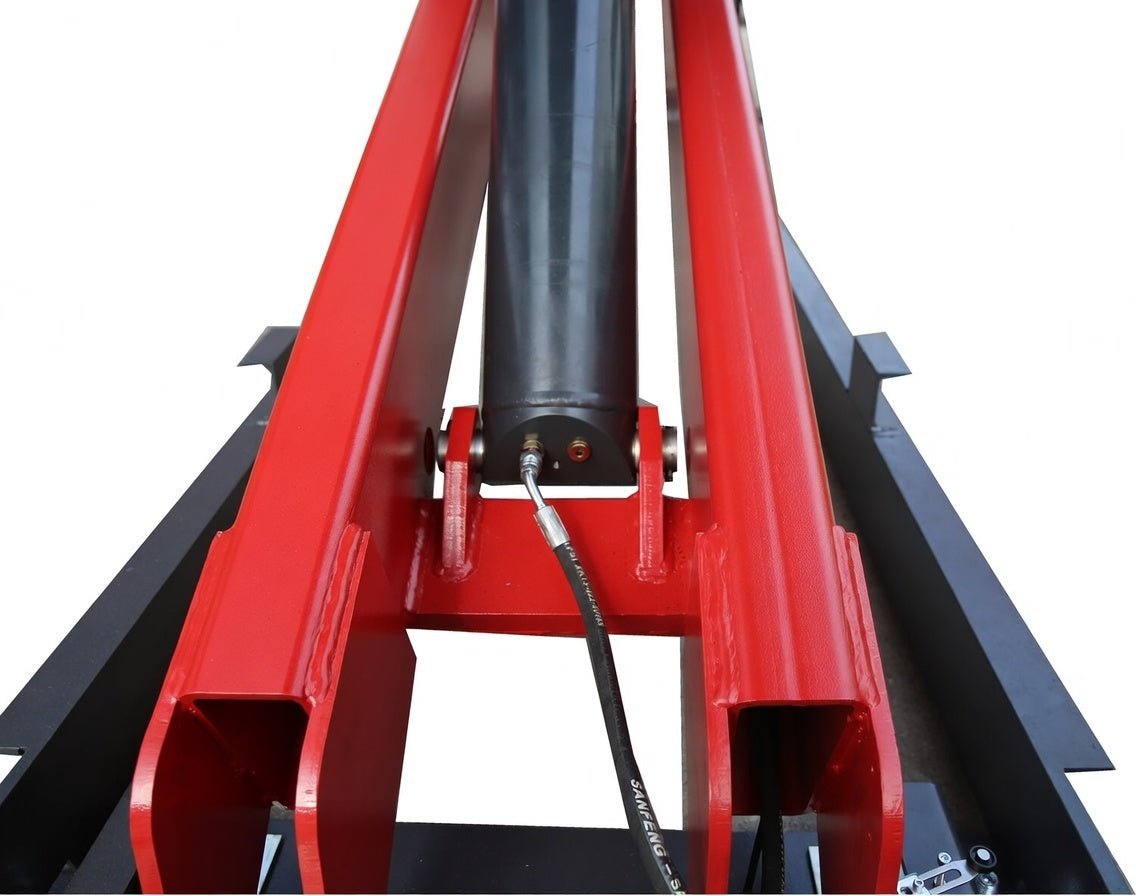

• Lifting system: Equipped with four hydraulic cylinders featuring full hydraulic synchronization

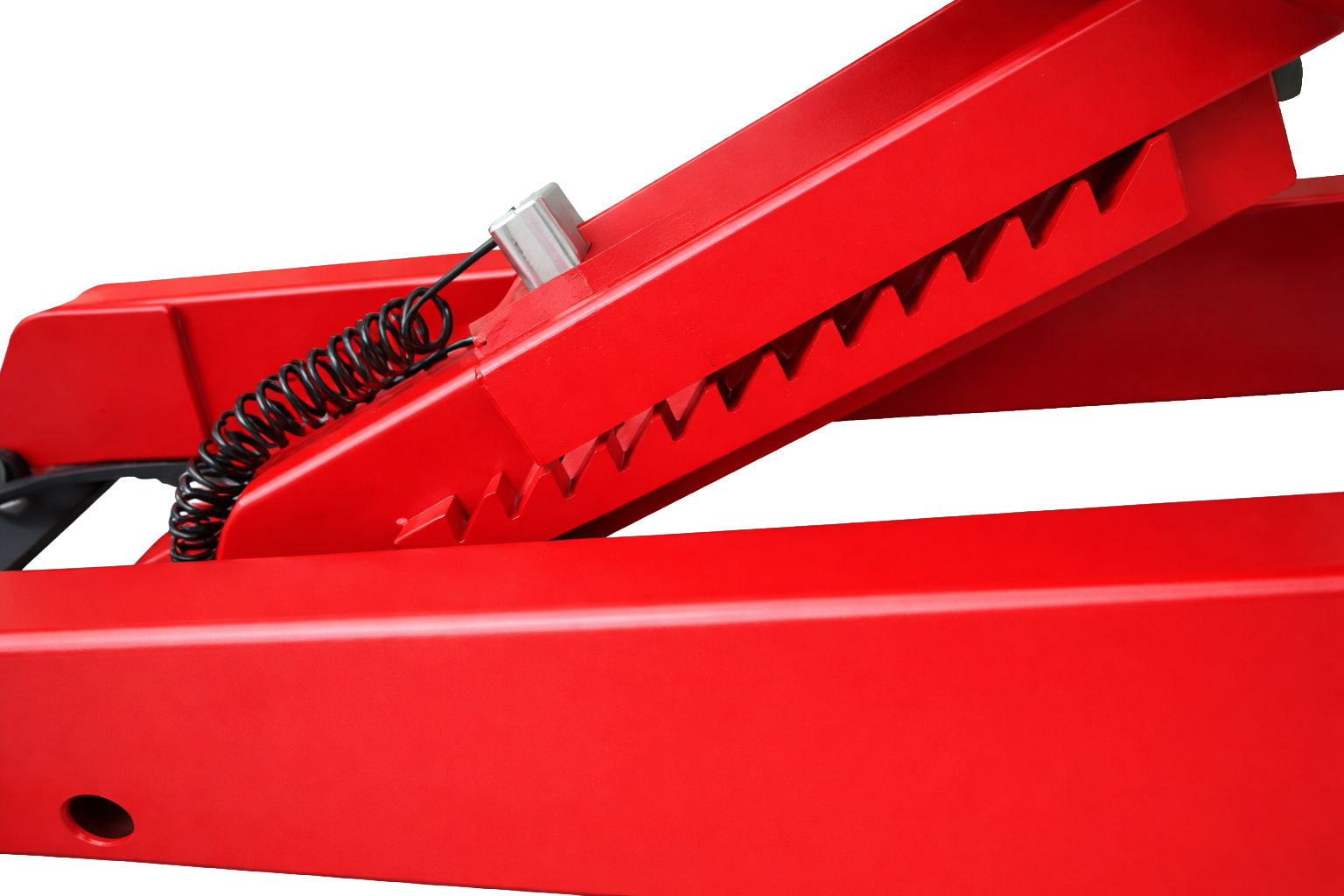

• Safety locking: Mechanical safety locks engage automatically and disengage only immediately before descent begins
• Control voltage: All control buttons and switches operate at safe low voltage (24 V)

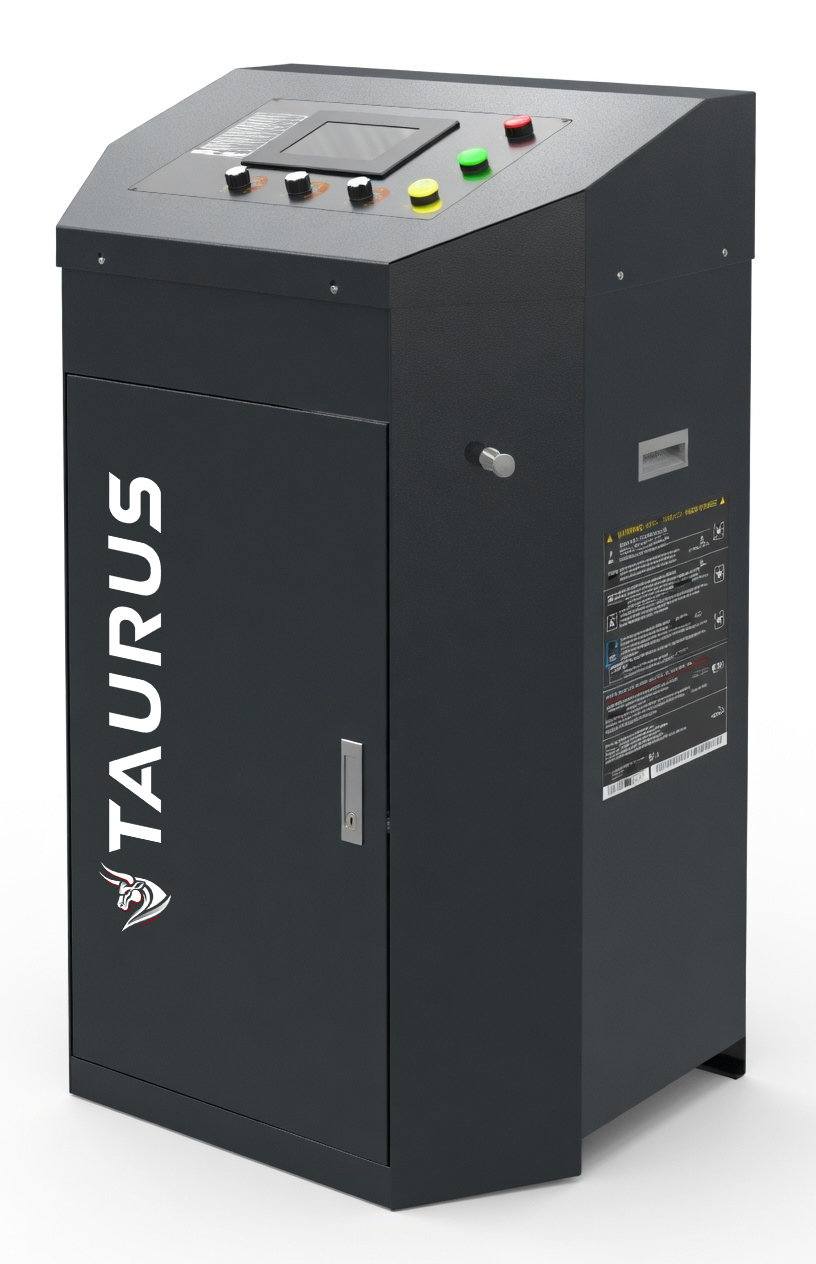

• Real-time monitoring: Each platform’s height and operating status are continuously displayed on a visual monitor
• Closed-loop synchronization: The two platforms automatically maintain alignment during every lifting and lowering cycle
  → Under normal operation, maximum height difference between platforms remains ≤ 50 mm
• Safety shutdown: Lifting system automatically stops if the height difference between platforms exceeds 50 mm
