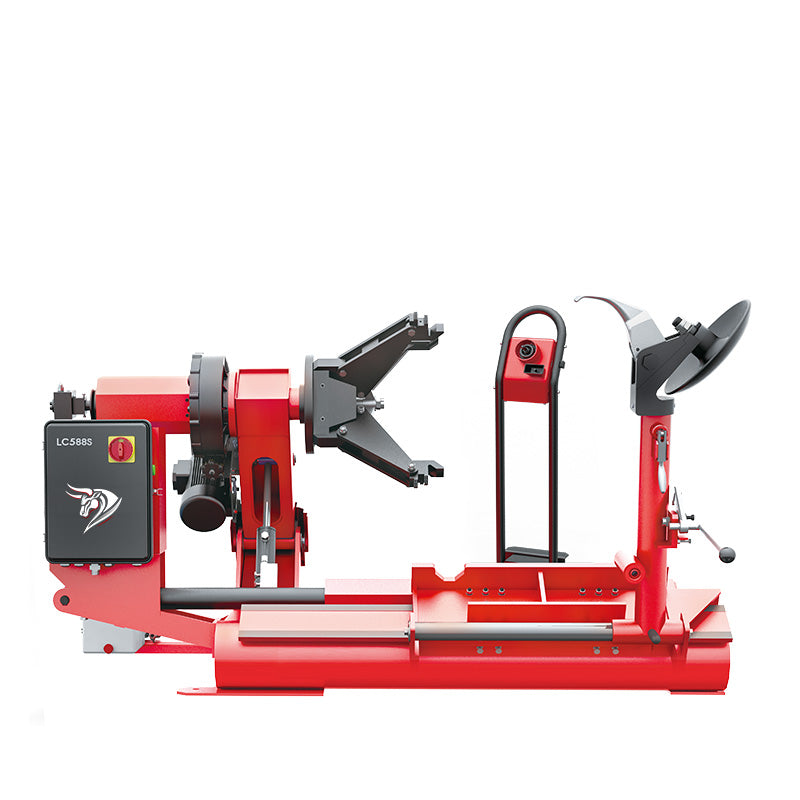

Taurus TC588HD : Commercial Tire Changer

The Taurus TC588 is designed for OTR and Heavy Duty Applications.  Built by Nexion, world leader in tire changer technology. These are world class tire changers that will help increase capability and productivity in your shop.

Pedestal Control Unit: Hand and foot controls enable to technician to operate safe bead breaking, mounting and demounting while minimizing damage to the assembly.

Tulip-Style Clamp: This design provides universal, self-centering clamping up to 46 inches. Motor is designed to operate clockwise and counter-clockwise.

Mount & Demount with Ease: Tractor, implement, and other assemblies are changed using the same methods.

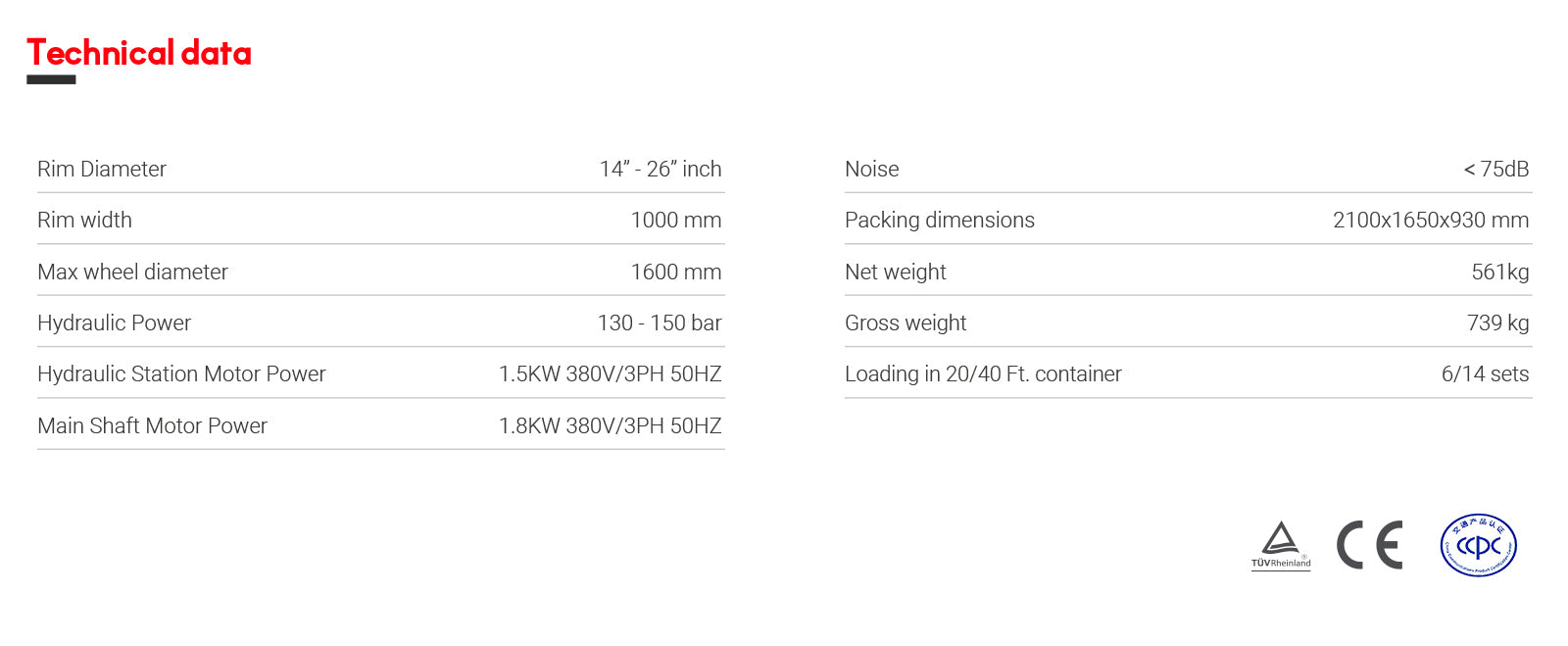

•    Inside Clamp: 14"-46"
•    With Extension Claw: 46"-60"
•    Rim Width: 39"(1000mm)
•    Max Tire Diameter: 62"(1600mm)
•    Hydraulic Working Pressure: 130-150 bar
•    Hydraulic Station Power: 1.5kw 230V/3Ph 50Hz
•    Gearbox Power: 1.8kw/3.0kw 3Ph 50Hz
•    Package Dimension: 83"Lx65"Wx37"H
•    Package Net Weight: 1236bs
•    Package Gross Weight: 1629lbs
